Impedance Coupon Generator

Scope:

It will generate the coupons required by the user for Impedance control.

Benefits:

  • Increase performance with 100% accuracy
  • Saves time
  • Seamlessly integrates with Ucam, no additional system requirements

Inputs required from the user:

  • Impedance type
  • Probe type
  • Detail of signal layer and reference plane
  • Line width and spacing
  • No.of different line width per signal layer

ImpendenceImage-1

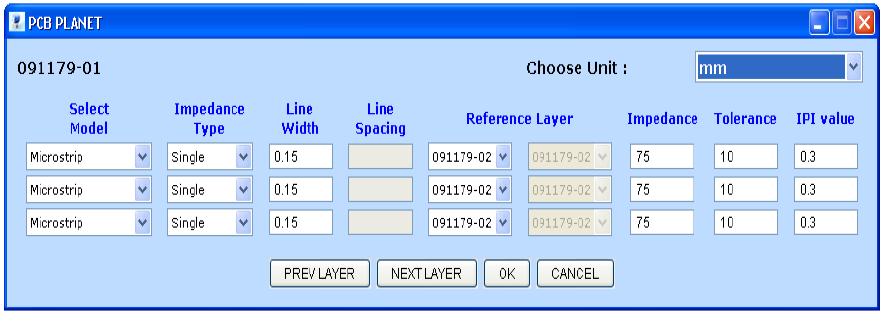

ImpendenceImage-2

Output:

Impedance coupons for selected impedance type in dpf format with its Ucam job file.

ImpendenceImage-3
